process execution

User Mode vs. Kernel Mode

• The CPU typically runs user code in user mode (low privilege)
• The CPU switches to kernel mode for
  • System calls from a process
  • Interrupts from external devices
  • Program execution faults
• These events are called "traps," causing the CPU to execute OS code
  • During a trap, the CPU enters kernel mode to handle the event
  • Afterward, it returns to user mode to resume the user code
• A process running OS code in kernel mode is still the same process
• The OS is not a separate process; it executes in the kernel mode of existing processes

Function Call vs. System Call

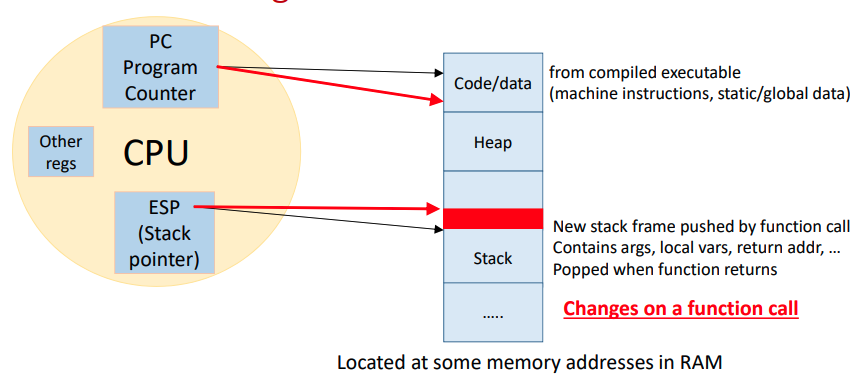

Function call

• Allocates memory on the user stack
• Pushes return address and jumps to function code
• Pushes register context to the user stack
• Executes function code
• Pops return address and context upon return
• Function address is known, allowing a direct jump instruction (e.g., call)

System call

• Pushes register context to a stack
• Saves PC and jumps to OS code
• Runs system call and restores context
• User cannot be trusted to jump to the correct OS address
• The OS avoids using the user stack for security
• Requires a secure stack and a secure jump mechanism to OS code

Kernel Stack and Interrupt Descriptor Table (IDT)

Kernel Stack

• Each process has a separate kernel stack for running kernel code
• It's part of the process's PCB in OS memory, inaccessible from user mode
• Used like a user stack but for kernel mode execution
• Context is pushed to the kernel stack during a system call and popped on completion

Interrupt Descriptor Table (IDT)

• The CPU uses the IDT to find the address of OS code to execute for events
• The IDT is a table of kernel code addresses
• It's set up by the OS at boot and is inaccessible from user mode
• The IDT's base address is stored in a CPU register
• On a trap, the CPU uses the IDT to find the correct interrupt handler address
• The kernel stack and IDT together provide a secure way to locate and run OS code

Hardware Trap Instruction

• User code invokes a special "trap instruction" to make a system call
• Example: int n in x86, where n is an index into the IDT for the corresponding OS function
• When the CPU executes a trap instruction
  • It switches to a higher privilege level (kernel mode)
  • It switches the stack pointer to the process's kernel stack
  • It saves the register context on the kernel stack
  • It gets the OS code address from the IDT and sets the PC
  • OS code begins running on the secure kernel stack
• The trap instruction provides a secure mechanism for transferring control to the OS, as user code cannot be trusted
• It's typically invoked by library functions (like printf) or triggered by hardware interrupts

Trap Handling and Return From Trap

• The basic trap mechanism involves saving context on the kernel stack, finding the OS handler address in the IDT, and running the OS code
• After handling a trap, the OS executes a "return-from-trap" instruction
• This instruction
  • Restores CPU register context from the kernel stack
  • Switches the CPU back to user mode
  • Restores the PC to resume user code right after the trap
• The user process resumes as if uninterrupted
• Before returning to user mode, the OS may decide to perform a context switch to another process

Why Switch Between Processes?

• The OS cannot return to the same process if it has
  • Exited or been terminated (e.g., segmentation fault)
  • Made a blocking system call (e.g., waiting for I/O)
• The OS may choose not to return to the same process if it has
  • Exceeded its time slice
  • To ensure fair CPU time-sharing with other processes
• In these cases, the OS scheduler performs a context switch to another process
  • The switch happens between the kernel modes of the two processes

OS Scheduler

• The OS maintains a list of active processes as Process Control Blocks (PCBs)
  • Processes are added on fork() and removed after wait()
• The OS scheduler is code that periodically selects a process to run
• The scheduler's basic operation
  • Saves the context of the current process to its PCB
  • Selects the next ready process to run
  • Restores the context of the selected process from its PCB
  • This cycle repeats continuously

Scheduling and Context Switching

• OS scheduling involves two tasks
  • Policy: Deciding which process to run next
  • Mechanism: Implementing the switch to the selected process
• Non-preemptive (cooperative) schedulers only switch when a process blocks or terminates
• Preemptive (non-cooperative) schedulers can switch processes at any time, even if the current one is ready
  • This is often triggered by a periodic timer interrupt
  • The OS then checks if the process's time slice has expired and may initiate a context switch

Mechanism of Context Switch

Phase 1: Entry into kernel mode and initial state

• When Process A traps into kernel mode, its user context is saved on its kernel stack
• If Process A must block (e.g., for I/O), the scheduler selects Process B to run

Phase 2: Saving kernel context

• The OS saves Process A's kernel context (PC, registers, kernel stack pointer) onto its kernel stack
• This captures the state of execution within the OS itself

Phase 3: The actual context switch moment

• The OS switches the Stack Pointer (ESP) register to point to Process B's kernel stack
• Process B's stack now becomes the active kernel stack

Phase 4: Restoring context and resuming execution

• The OS restores Process B's kernel context from its kernel stack, resuming execution in kernel mode
• The OS then restores Process B's user context from its kernel stack, resuming execution in user mode
• The context switch is now complete

Understanding Saving and Restoring Context

• Context (PC and registers) is saved on the kernel stack in two scenarios
  • User-to-Kernel transition: The trap instruction saves the user context
    • The return-from-trap instruction restores it
  • Context switch: The context switching code saves the kernel context
    • This context is restored when the process is scheduled to run again
