intro

Computer Systems

• Real-world computer systems are complex
  • They consist of multiple components/tiers distributed across several machines
  • They handle a high number of user requests efficiently and reliably
• Example: An e-commerce application
  • Clients access multi-tier applications hosted in data centers or public clouds
  • Front-end components (e.g., web servers) receive user requests, respond to users, and consult various application servers to build responses
  • Application servers contain business logic to process different types of user requests
  • Application data is stored in several database servers in the backend
  • Each of these components is built on one or more computers

The Building Blocks

• A single computer system is the building block for all large, distributed computer systems that run real-world applications
• What does a computer system contain?
  • Hardware: CPU, memory, I/O devices, etc.
  • System software: Operating System (OS), etc.
  • User software: User applications (browser, email client, games, application servers, databases, AI/ML algorithms, etc.)
• Understanding the basic building blocks of a single system is essential before building large-scale systems for real applications

Why Study Operating Systems?

• Knowledge of hardware (architecture) and system software (OS), and how user programs interact with these lower layers, is essential for writing high-performance, reliable user programs
• Key questions addressed by studying OS
  • What happens when you run a user program?
  • How can you make your program run faster and more efficiently?
  • How can you make your programs more secure, reliable, and tolerant to failures?
  • Why is your program running slowly, and how can you fix it?
  • How much CPU/memory is your program consuming, and why?
• OS expertise is one of the most critical skills for building high-performance, robust, and complex real-world systems

Beyond OS to Real Systems and Future Courses

• Architecture + OS: Provides the foundation for understanding how a user program runs on a single machine
• Networking: Explores how programs communicate across machines
• Databases and data storage: Covers how applications store data efficiently and reliably across one or more machines
• Performance engineering: Focuses on making programs run faster
• Distributed systems: Examines how multiple applications across multiple machines work together to perform tasks reliably
• Other topics: Virtualization, cloud computing, security, etc.

What Is an Operating System?

• Middleware between user programs and system hardware
  • Not user application software, but system software
  • Examples: Linux, Windows, MacOS
• Manages computer hardware: CPU, main memory, I/O devices (hard disk, network card, mouse, keyboard etc.)
  • User applications do not have to worry about low-level hardware details
• Components
  • Kernel: The core functionality of the OS
  • Other programs: Shell, commands, and utilities that help users interact with the OS

Goals of Operating Systems

• Abstracts detailed hardware resources for user programs
• Optimizes the use of the CPU, memory, and other resources
• Ensures separation between multiple processes

History of Operating Systems

• Initially, OS was a library providing common functionality to access hardware via function calls from user programs
  • Convenient, as users did not need to write code to manage hardware
  • Centralized management of hardware resources is more efficient
• As computers evolved to run multiple processes concurrently
  • Multiple untrusted users shared the same hardware
• So, OS evolved into trusted system software, providing isolation between users and protecting hardware
  • Ensures multiple users are isolated and protected from each other
  • Protects system hardware and software from unauthorized access

Key Concepts in Operating Systems

• Virtualization: The OS provides a "virtual" or logical view of the hardware, hiding the complex physical view, giving each user/program the illusion of having entire hardware to itself
• Concurrency: The OS runs multiple user programs simultaneously (at the same time), sharing system resources efficiently and securely
• Persistence: The OS stores user data persistently on external I/O devices

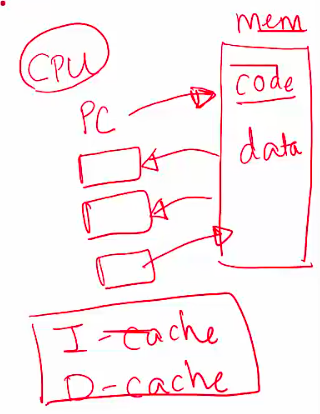

What Is a Program?

• Consist of code (CPU instructions) and data for a specific task
• Store program concept
  • User programs are stored in main memory (instructions + data)
  • Memory is byte-addressable, data is accessed via memory addresses
  • The CPU fetches code/data from memory using addresses and executes instructions
• Processes
  • A process is a running program
  • Modern CPUs have multiple cores for parallel execution
  • Each core runs one process at a time
  • Hyper-threading allows one physical core to appear as multiple logical cores, running multiple processes simultaneously

What Happens When You Run a Program?

Stage 1: OS

• A compiler translates high-level code into an executable
• The executable file (e.g., “a.out”) is stored on the hard disk
• When executed, a new process is created
• The process is allocated a virtual address space in RAM to store code and data (compile-time data allocated at start, runtime data allocated as the program runs)
• The executable is loaded from disk to main memory when the program starts
• The CPU begins executing the program's instructions

Stage 2: CPU

• Fetches the instruction pointed by the PC from memory
• Increments the PC to point to the next instruction
• Loads data required into registers
• Decodes and executes the instruction
• Stores results back to memory, if needed

CPU execution context

• When running a process, CPU registers store the execution context (e.g., Program Counter (PC) points to the current instruction, general-purpose registers store data)

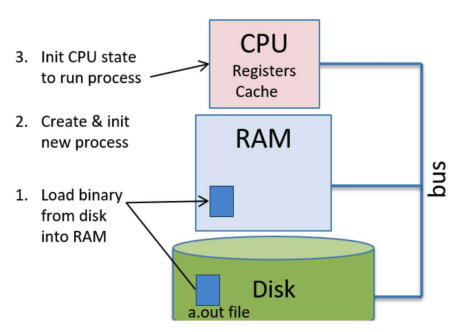

Role of OS in Running a Process

• Allocates memory for the new process in RAM
  • Loads code and data from the disk executable
  • Allocates memory for stack and heap
• Initializes the CPU context (e.g., PC points to the first instruction)
• The process begins execution
  • The CPU runs user instructions
  • The OS steps out but intervenes when needed

Concurrent Execution and CPU Virtualization

• The CPU runs multiple programs concurrently
  • The OS switches between processes, running one for a short time before switching to another
• How the OS ensures correct concurrent execution
  • Runs process A for some time
  • Pauses A, saves its context, and loads the context of process B (context switching)
  • Runs process B for some time
  • Pauses B, restores A's context, and resumes A
• Each process believes it is running alone on the CPU
  • Context switching ensures no disruption is perceived by the process
• The OS virtualizes the CPU across multiple processes
• The OS scheduler decides which process to run on which CPU and when

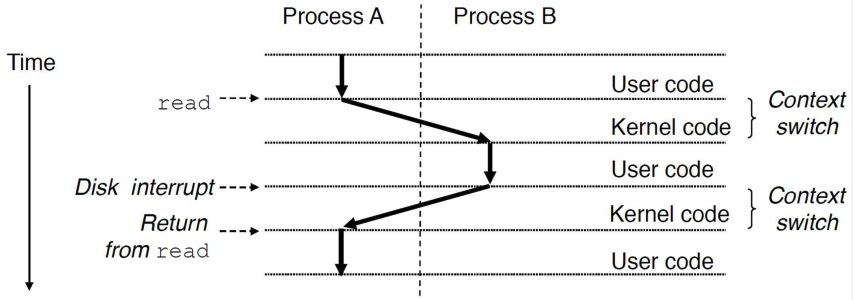

Context Switching

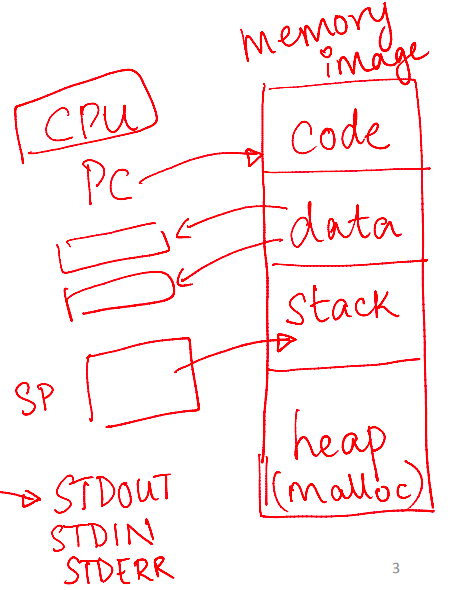

Memory Image of a Process

• Memory image: The code and data of a process in memory
  • Code: CPU instructions in the program
  • Compile-time data: Global/static variables in the program executable
  • Runtime data: Stack and heap for dynamic memory allocation
• The heap and stack can grow/shrink during execution with OS assistance
  • The stack pointer (CPU register) tracks the top of the stack
• The memory image includes additional code (e.g., language libraries, kernel code) that the process may execute

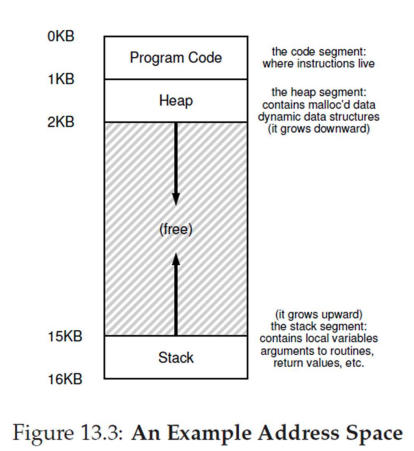

Address Space of a Process

• The OS gives each process the illusion that its memory image is laid out contiguously from address 0 (virtual address space)
• In reality, processes are allocated memory in chunks across RAM at physical addresses, which the programmer does not see
  • Pointer addresses in a program are virtual, not physical
• The OS maps virtual addresses to physical addresses when accessed
• The OS virtualizes memory, providing each process with its own virtual address space

Isolation and Privilege Levels

• Protecting concurrent processes
  • Can one process interfere with another's code or data?
  • How does the OS ensure safe sharing during virtualization?
• CPU mechanisms for isolation
  • Privileged instructions: Access sensitive information or perform sensitive actions
  • Unprivileged instructions: Regular operations (e.g., add)
• CPUs have multiple modes (e.g., Intel x86 CPUs use 4 rings)
  • Low privilege (e.g., ring 3): Only unprivileged instructions
  • High privilege (e.g., ring 0): Both privileged and unprivileged instructions

User Mode and Kernel Mode

• User programs run in user mode (unprivileged)
  • The CPU executes only unprivileged instructions
• OS runs in kernel mode (privileged)
  • The CPU can execute both privileged and unprivileged instructions
• Mode transitions
  • The CPU shifts to kernel mode to execute OS code during
    • System calls: User requests for OS services
    • Interrupts: External events requiring OS attention
    • Program faults: Errors needing OS intervention
  • After completing kernel-mode tasks, the OS returns to user mode

System Calls

• A system call is made when a user program requires an OS service (e.g., reading from a hard disk)
  • Why? User processes cannot execute privileged instructions to access hardware, ensuring one user cannot harm another
  • The CPU jumps to OS code to handle the system call and returns to user code afterward
• User programs typically use library functions (e.g., printf in C), which invoke (cause) system calls (e.g., to write to the screen)

Interrupts

• The CPU handles external events (e.g., mouse clicks, keyboard input) via interrupts
• An interrupt is an external signal from an I/O device requesting CPU attention
• Example: A program requests disk data, and the disk raises an interrupt when the data is ready (avoiding program waiting)

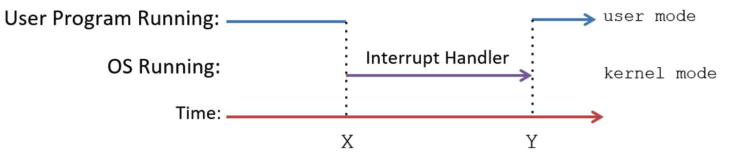

Interrupt Handling

• Process - How are interrupts handled?
  • The CPU is running process P when an interrupt arrives
  • The CPU saves P's context, switches to kernel mode, and runs OS interrupt-handling code (e.g., reading a keyboard character)
  • The CPU restores P's context and resumes P in user mode
• Interrupt-handling code is part of the OS
• The CPU executes the OS interrupt handler and returns to user code

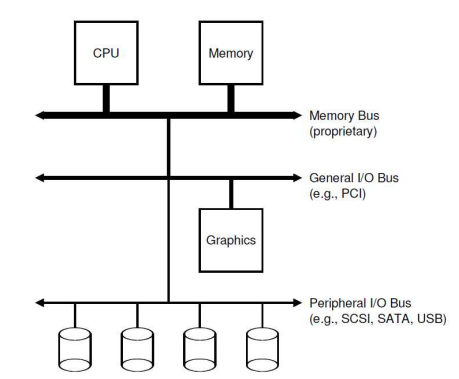

I/O Devices

• The CPU and memory are connected via a high-speed system (memory) bus
• I/O devices connect to the CPU and memory via separate buses
  • I/O devices interface with the external world
  • Store user data persistently
• The OS manages I/O devices on behalf of users

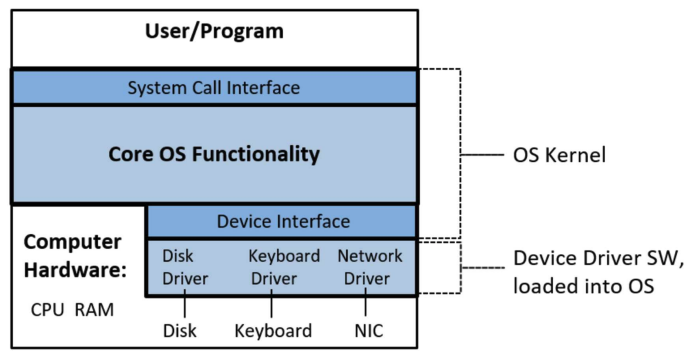

Device Controller and Device Driver

• Each I/O device is managed by a device controller (a microcontroller communicating with the CPU/memory over a bus)
• Device driver: Special OS software with device-specific knowledge to handle I/O operations
• Functions of the kernel device driver
  • Initialize I/O devices
  • Start I/O operations and issue commands to the device (e.g., read data from a hard disk)
  • Handle interrupts from the device (e.g., when data is ready)
